Vacuum Tables

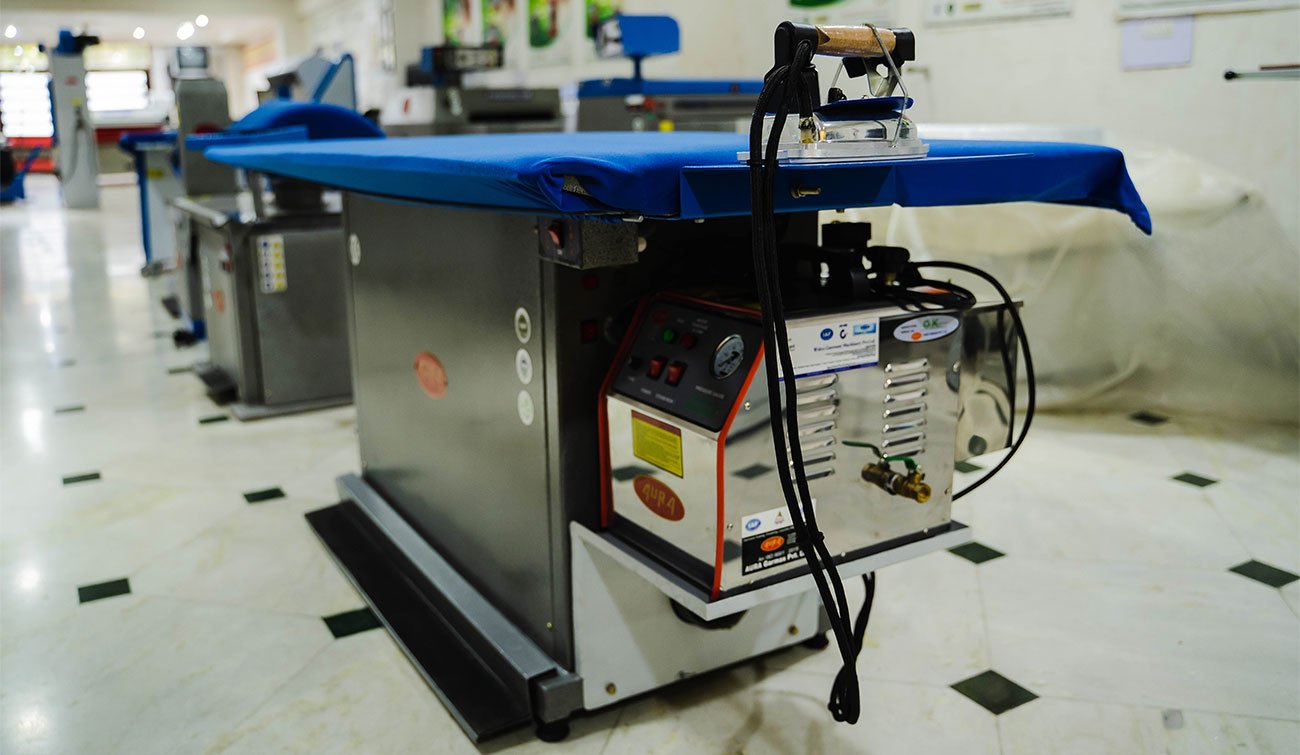

Vacuum Ironing Table

vacuum-Ironing-table

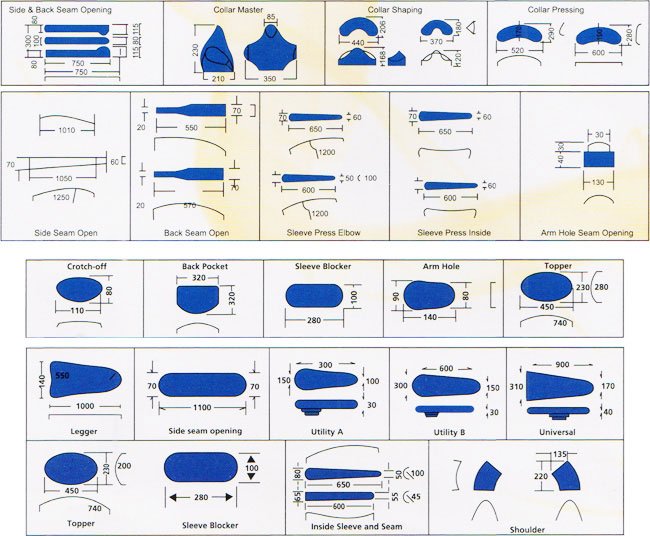

Features of IB Models

Features-of-IB-models

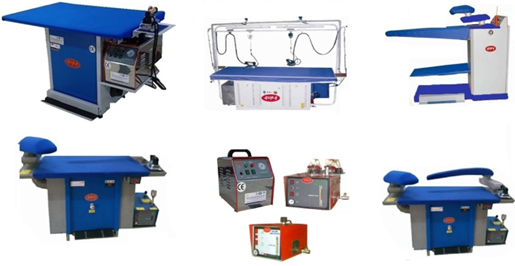

Pressing Stations

pressing-table-photo

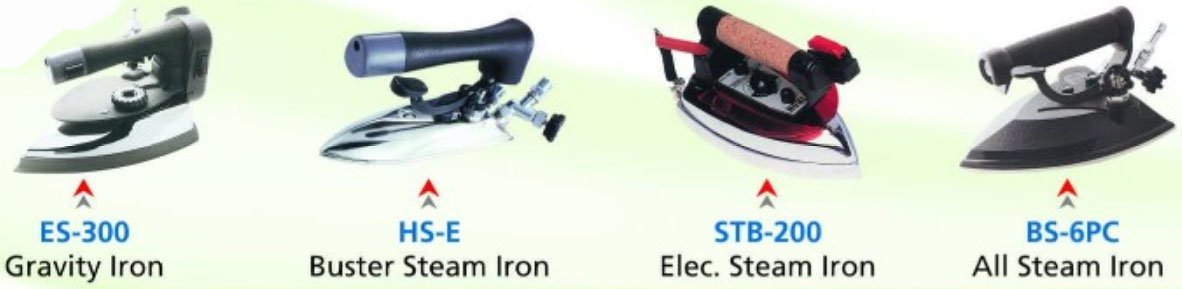

Steam Iron

steams-iron
Features
  • Flat top ironing table with/ without easily interchangeable swivel arm with buck for better ironing of smaller parts
  • Strong and uniform suction that keeps the table dry for efficient and optimum use of steam iron.
  • Special type of mesh, heat resistant cloth, silicon pad, silicon foam used to ensure better suction and dryness.
  • Optional blowing system: while suction inhales all the moisture, the blowing system creates "air cushion" impressions of the iron on the garments and brings back their original texture. Also removes toughest creases without any shine marks on the fabric.
  • In built heaters with thermostat to keep tables dry even in humid conditions.
  • High quality powder coating ensures rust free performance and longer life.
  • Ergonomically designed pedal for very easy and low fatigue operation Manual adjustment of vacuum
  • Power efficient and cost effective-Extremely powerful suction and blowing attained with a hi-tech motor or only 0.37 KW.
  • Low noise technology.
  • Low Maintenance and availability of spares.
  • Optional:
    Lighting and hanger system
    Adjustable table height
    Chimney exhaust for sending hot air in up level
    Provision of Shelves to accommodate small parts at work place
    All manual and electric components are easily replaceable and available
Technical Specifications
S.no Model Suction Dimension (in mm) Total Dimension(in mm) Power Purpose
1 Ag-204/SB (Seam buster) 1300x80 1930x535x1150 0.37 KW For Formal Trouser side seam opening
2 AG-204/JSB (Jacket seam buster) Customized 1000x700x1700 0.37KW For small parts of formal jackets
3 AG-204/JSB/BS (Blowing suction) Customized 1000x700x1700 0.76kw For small parts of formal jacket
4 AG-205/FIB (Inline)Suction Flat 1050x680 1050x680X800 2.8KW For intermediate pressing
5 AG-208/BIB (Inline)Suction buck 1050x680 1050x680x800 2.8KW For intermediate pressing
6 AG-206/F Advantage 1200x700 1400x700x800 0.37Kw For all type of garment
7 AG-206/F(Suction flat) 1200x700 1600x700x800 0.37Kw For all type of garment
8 AG-206/FIB 1200X700 1600x700x800 0.37Kw For Garment & Shirt
9 AG-206/BIB 1200X700 1600x700x800 0.76 KW For Garment & Shirt
10 AG-206/B (Suction Buck) 1200x700 1600x700x800 0.76 Kw For Jacket & Trouser
11 AG-206/BB(Suction with double Buck 1200X700 1600X700X800 0.76 Kw For Trouser & Jacket
12 AG-206/BBIB(Suction with double Buck) 1200X700 1600X700X800 0.76 Kw For Trouser & Jacket
13 AG-206/BS(Blowing & Suction with Buck) 1200X700 1600X700X800 0.76 Kw For Jacket & Cushion garment
14 AG-206/BBS (Blowing & Suction with Double Buck) 1200X700 1600X700X800 0.76 Kw For Jacket & Cushion garment
15 AG-206/T(Tittle type) 1200x700 1600X700X800 0.76 Kw For Shirt
16 AG-207/F(Suction Flat) 1200x900 1600x900x800 0.76 Kw For woolen & Knitted garments
17 AG-207/B(Suction Buck) 1200x900 1600x900x800 0.76 Kw For trouser & Jacket
18 AG-207/BB(Suction with double Buck) 1200x900 1600x900x800 0.76 Kw For trouser & Jacket
19 AG-207/BS (Blowing & Suction with Buck) 1200x900 1600x900x800 0.76 Kw For cushion garment & Jacket
20 AG-207/BBS (Blowing & Suction with double Buck) 1200x900 1600x900x800 0.76 Kw For cushion garment & Jacket
21 AG-207/T(Tilted type) 1200x900 1600x900x800 0.76 Kw For Shirt
22 AG-207/ST(with steam Table) 1500x900 1900x900x800 0.76 Kw For Knitted garment & Jacket
23 AG-207/Adv (Suction Flat) 1400x900x800 0.76 Kw For ladies garment & skirts
24 AG-207/F Advantage 1200x900 1400x900x800 0.76 Kw For Jacket & trouser
25 AG-208/F Advantage 1500x1200 1900x1200x800 0.76 Kw For Knitted garment & Woolen
26 AG-208/F (Suction Flat) 1500x1200 1900x1200x800 0.76 Kw For Knitted garment & Woolen
27 AG-208/BB(Suction with double buck) 1500x1200 1900x1200x800 0.76 Kw For knitted garment & Woolen
28 AG-208/BBS(Blowing & Suction with Double Buck) 1500x1200 1900x1200x800 0.76 Kw For knitted garment & Woolen
29 2AG-209/F (Suction Flat) 1160x365 1655x600x1045 0.76 Kw For Utility pressing for woven & Knited
30 AG-209/B(Suction) 1160x365 1655x600x1045 0.76 Kw For Pressing of jackets
31 AG-209/BS(Blowing & Suction with Buck) 1160 x365 1655x600x1045 0.76 Kw For Pressing of cushion garments &jackets
32 AG-210/HF 2100X750 2500x750x800 0.76 Kw For home furnishing
