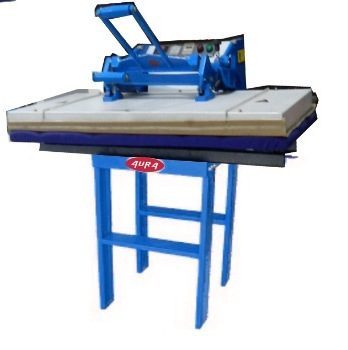

1. AG-964 Multipurpose Machine
Universal Flat Bed Fusing Machine (Multi-Purpose with suction system.) with digital timer and temperature controller Aluminum Body, Specially designed for High Fashion Garments and Uneven Fabric / Stone Works / Swarovski. Used mostly by High Fashion Designers. Less Power Consumption due to the Block Heaters Technology.
A very light fusing machine designed in almost 100% Aluminum body, special type of aluminum upper buck is made so that it can maintain heat & more pressure which helps in fine fusing, special bed & cushion are given on the lower buck which helps in given the best result of fusing, with table stand with temperature controller and suction of lower buck for instance cooling.
Features
- Designed specifically for fusing.
- Convenient to use with perfect fusing, as available a wide working range.
- Automatic belt control with right and left.
- Micro sensors at the end of the roller.
- Roll-rewinding function optional.
- Fully automatic belt deviation.

| Model | AG-964 Premium | AG-964 Ultra Premium |
|---|---|---|
| Temp Range | 0-300 C | 0-300 C |
| Power | 2.1 KW / Hr | 2.5 KW / Hr |
| Working Table ( in mm) | 1200x480 | 1200x480 |
| Voltage | 220 V, 1Ph | 220 V, 1Ph |
| Dimension HxWxL ( in mm) | 1200x705x1370 | 1200x705x1470 |

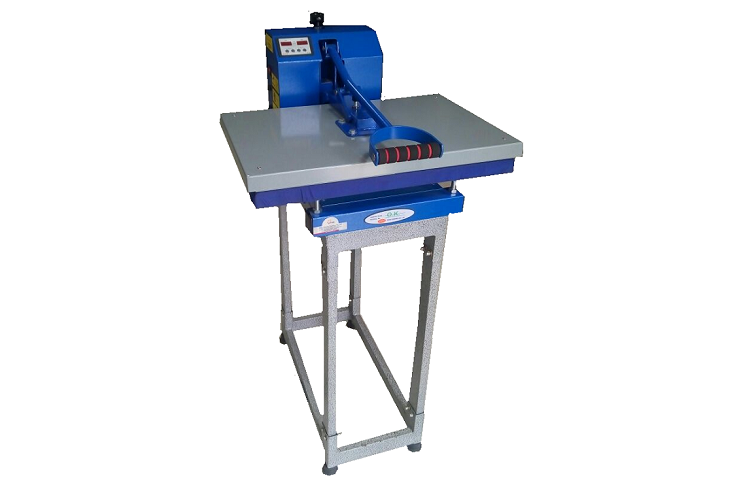

2. 964 Premium
Universal Flat Bed Fusing Machine (Multi-Purpose with suction system.) with digital timer and temperature controller Aluminum Body, Specially designed for High Fashion Garments and Uneven Fabric / Stone Works / Swarovski. Used mostly by High Fashion Designers. Less Power Consumption due to the Block Heaters Technology. A very light fusing machine designed in almost 100% Aluminum body, special type of aluminum upper buck is made so that it can maintain heat & more pressure which helps in fine fusing, special bed & cushion are given on the lower buck which helps in given the best result of fusing, with table stand with temperature controller and suction of lower buck for instance cooling.
Features
- Designed specifically for fusing.
- Convenient to use with perfect fusing, as available a wide working range.
- Automatic belt control with right and left.
- Micro sensors at the end of the roller.
- Roll-rewinding function optional.
- Fully automatic belt deviation.
| Model | AG-964 Premium | AG-964 Ultra Premium |
|---|---|---|
| Temp Range | 0-300 C | 0-300 C |
| Power | 2.1 KW / Hr | 2.5 KW / Hr |
| Working Table ( in mm) | 1200x480 | 1200x480 |
| Voltage | 220 V, 1Ph | 220 V, 1Ph |
| Dimension HxWxL ( in mm) | 1200x705x1370 | 1200x705x1470 |

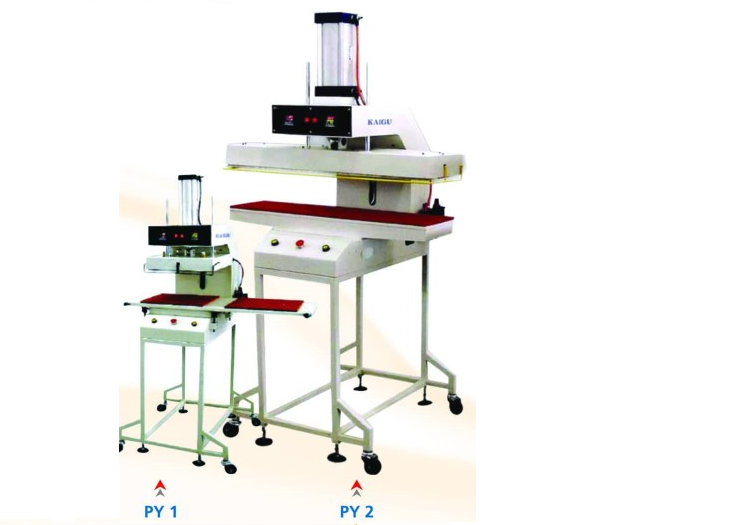

3. PY1 & BL1
- Fully automatic compress air driven type.
- The horizontal pressure system gives uniform, assuring no slippage of product.
- Pressure pressing time and temperature control can be made easily.
- The Teflon sheet is used on the upper aluminium press plate doesn’t soil and it can be cleaned easily.
- The silicon mat is used one the lower aluminium press plate.
PY & BL Fully Automatic Air Driven Heat Transfer Press
PY & BL Series fully automatic air driven heat transfer press is a kind of heating pressing machine. This machine is mainly used for making pockets of non-thread swing process, for the fusing of clothing pieces and for one point printing of clothes, hats, shoes, socks and stocking. With this machine, not only can normal printing be done, but also the transferring of flock printing and rubber printing.
Features

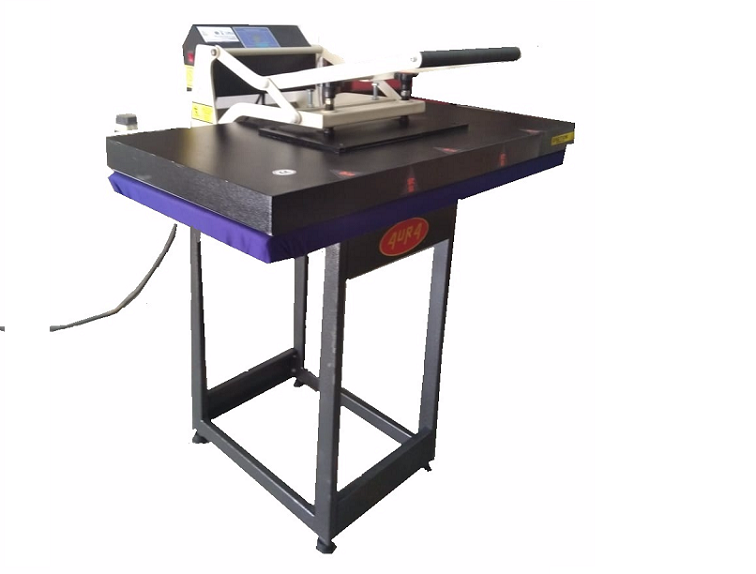

4. Flatbed Fusing Machine
An innovation in flat bed fusing machine almost 100% aluminum parts with suction fully automatic multipurpose fusing machine for even an uneven garments seroski transfer, paper leather transfer specially design for designers high fashion garment and leather garment.
Features
- A very light fusing machine designed in almost 100% Aluminium body.
- Special type of aluminium upper buck is made so that it can maintain heat & more pressure which helps in fine fusing.
- Special bed & cushion are given on the lower buck which helps in given the best result of fusing, with table stand with temperature controller and suction of lower buck for instance cooling.
| Model | Work table size | Power Kw/h | Temperature | Time Delay |
|---|---|---|---|---|
| AG-35 | 15”x15” | 1 | 50-200 C | 1-60 S |
| AG-45 | 25”x16” | 1.5 | 50-200 C | 1-60 S |
| AG-55 | 33”x16” | 1.75 | 50-200 C | 1-60 S |
| AG-65 | 31”x25” | 2 | 50-200 C | 1-60 S |
| AG-75 | 40”x20” | 2 | 50-200 C | 1-60 S |
