Cloth Inspection Machines, Fabric Spreading Machine, Fabric Inspection Machines Exporter & Suppliers India

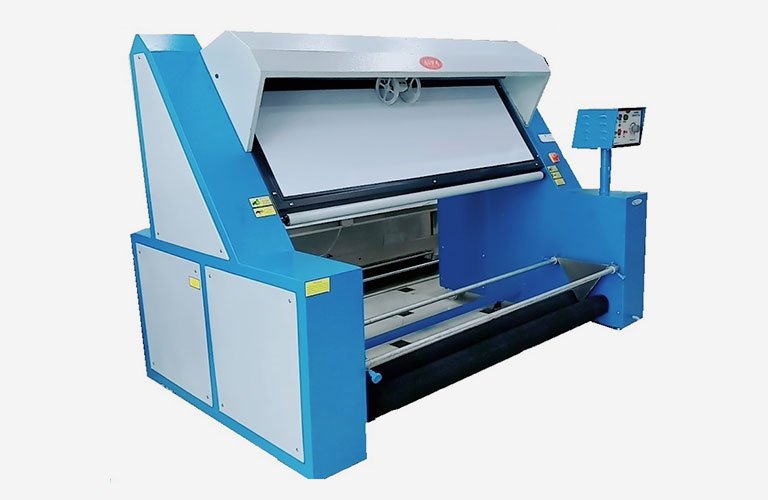

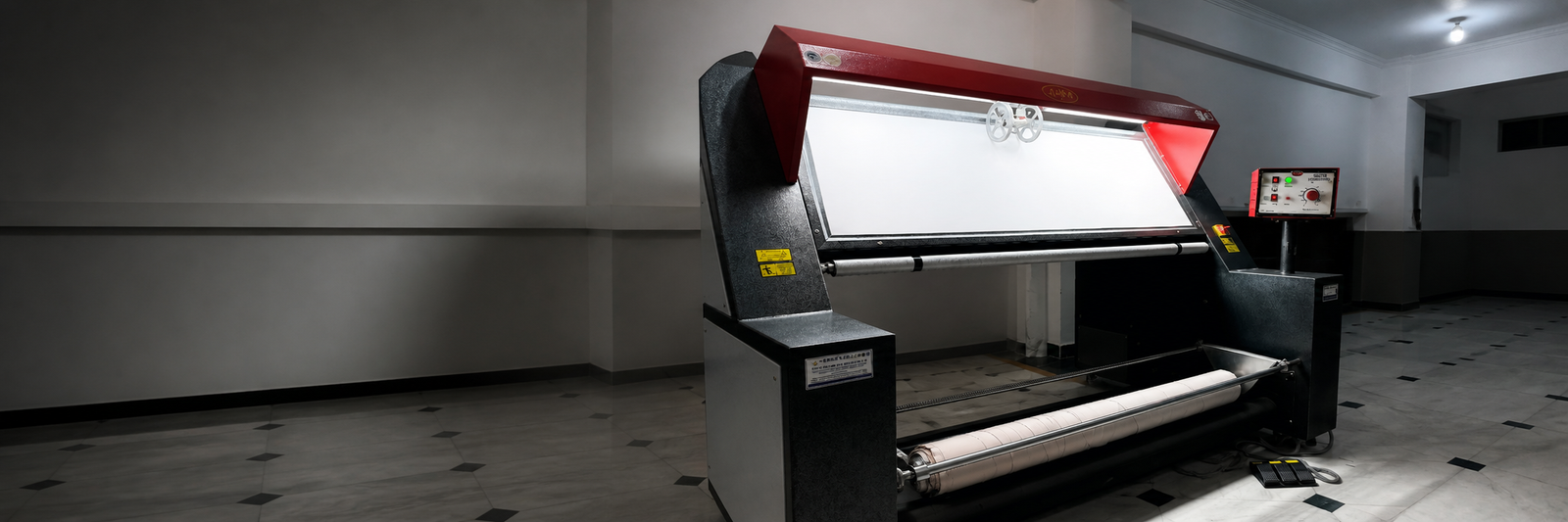

Compact – Efficient – Accurate Fabric Inspection Machine

Fabric Measuring and Inspection Machine (Ultra-Premium Model) with a special 4-in-1 design: Roll-to-Thaan, Thaan-to-Roll, Thaan-to-Thaan, and Roll-to-Roll. The machine includes a digital meter counter and an integrated end cutter, with relaxing rollers controlled independently through dedicated controllers.

Request a Quote Speak with an Expert

Fabric Width Adjustability:

High Productivity Due To The Bright And Accurate Light On The Plates Which Enable Easy Detection In Any Part Of The Fabric.

Easy And Accurate Inspection Also Comes With PLC Control Where All The Functions Can Be Controlled Easily , Analog Length Counter ( Digital Metre Can Also Be Fixed On Special Request ) , High Productivity Easy And Accurate Inspection Also Comes With PLC Control Where All The Functions Can Be Controlled Easily , Analog Length Counter ( Digital Metre Can Also Be Fixed On Special Request ) , High Productivity Turbo Winding And Unwinding System Which Helps The Garment To Easily Wind And Unwind With The Help Of Buttons , This Makes The Machine Easy To Handle And Less Labour Intensive , LED Technology Which Saves 30% Power Consumption Than Any Other Machine This Helps In Saving Resources , Universal Model 4 In 1 With Machine Roll To Than, Than To Roll, Than To Than And Roll To Roll A special Tensioning device is provided to provide adjustable tension to the fabric during Inspection. With Emergency Stop facility to stop the machine at any time , as per the Safety and CE Norms. Complete with all accessories-tray for keeping loose fabrics, plastic pipes for rolling fabrics etc.

Comparison of AG-93 Ultra Premium, Premium, and Advantage fabric inspection machines
Model Features	Recommended AG-93 (Ultra - Premium)	AG-93 (Premium)	AG-93 (Advantage)
Alignment Cloth Edge		×	×
Forward & Reverse System			×
Length Counter	Digital Counter	Analog	Analog
Maximum Cloth Width	1800 mm	1800 mm	1800 mm
Available Width Range	Sizes available from 1400 mm to 2800 mm
Inspection Speed	0-24 m/min	0-24 m/min	0-24 m/min
Back Roller			×

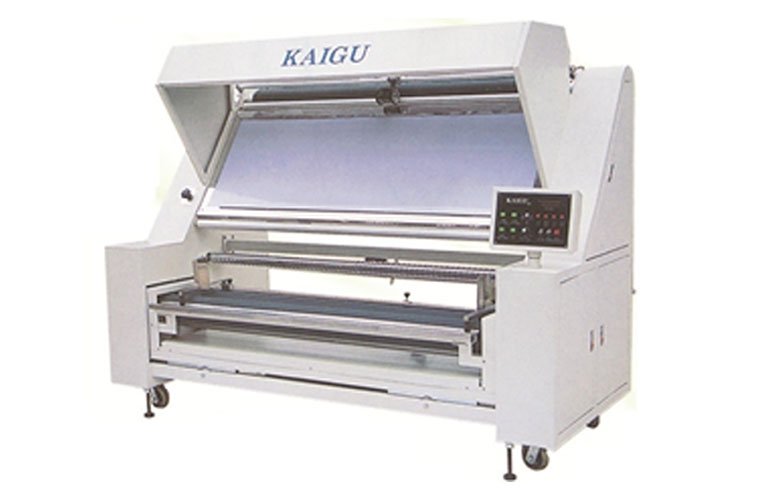

Kaigu fabric measuring and inspection machine

Fabric Measuring and Inspection Machine (Kaigu) with defect counter meter & printer.(100% imported)

Fabric width adjustability; high productivity; easy and accurate inspection, analog length counter, high productivity Width: 1800 mm, with front rollers for winding & unwinding fabric, edge control system, relaxing system, defect counter meter & printer.

Request Technical Details Call +91-9810528399

This Equipment with its special Unwinding Roller placed at various locations helps in easy movement and also in removing the crease in the fabric while inspection.
Forward & reverse motion facility is provided to enable effective inspection.
Automatic edge control system helps the roll to foam evenly.
The Length of the Fabric inspected is directly displayed by the Length Counter.
The Digital fault counter helps in counting the number of defects in the fabric by giving the command to the printer.
Emergency stop switch is provided to stop the machine suddenly in case of an emergency.
Working with Both Length and Fault counters the operator can easily keep note of all the faults and also know at which length the fault are coming.
Fabric relaxing system helps the than to be made evenly.
Highly Suitable to check the all type of garment

Automatic Edge Aligning and Checking Machine (Fabric Inspection Machine Kaigu)

Features

Suitable for checking knitted cloth materials, used for cloth reeling, measuring and releasing equipped with electronic sensor for automatic edge alignment and back reeling. Unique electronic measuring device to ensure freely reeling. Unique electronic measuring device to sure freely reeling and releasing the material essential for large scale cloth knitting and weaving factories Capacity stating from: 1800mm to 3200 mm

Kaigu YB-180 WB technical specifications
Alignment	Kaigu YB-180 WB
Alignment	Ÿ
Stir Cloth	Ÿ
Roll to Roll/ Than to roll/ Roll to Than/Than to Than	Ÿ
Length Consenter	Electric
Max. Cloth Width	1800mm
Inspecting Speed	0~24 m/min
Power	1.5 kw
Electricity	220V 1Ph 50Hz

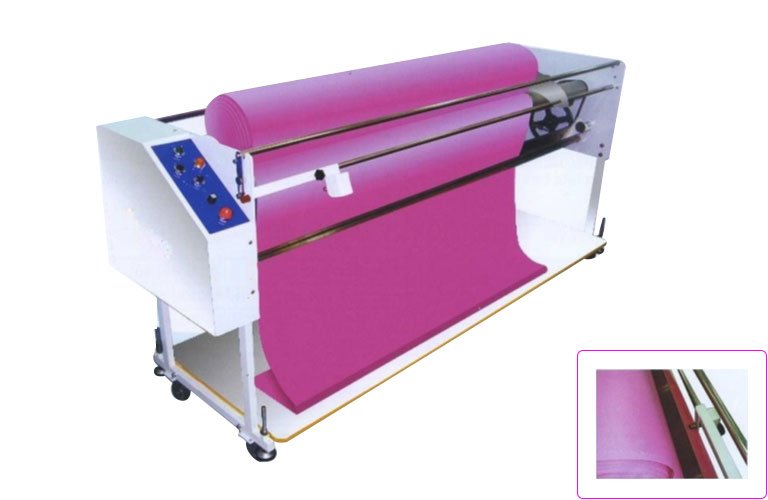

Fabric Relaxing Machine

The machine is applicable to knit and woven material both. Relaxing width:82"& 90",we can also make other sizes up to customer's demand.
This machine can relax the fabric with fast, well and edge accurate situation, so can be used in spreading machine with super efficient.
Machine will stop automatically when out of fabric.
The roller can be reversed for rolling up the fabric.
The machine has been set up with bearing wheel, can be moved easily.

Request Details Call +91-9810528399

Fabric relaxing machine for knit and woven materials

Model	LD-200N / 82〞	LD-200N / 90〞
Power	1P / AC220V 50 / 60Hz	1P / AC220V 50 / 60Hz
Diameter	500 mm	500 mm
Max Loading	80kgs	90kgs
Max Width	82"	90"
Max Speed	60 yd / min	60 yd / min
Dimension	2430 x 780 x 1120 mm	2630 x 780 x 1120 mm
Weight of Machine	180 kg

Fabric materials prepared for semi-automatic spreading

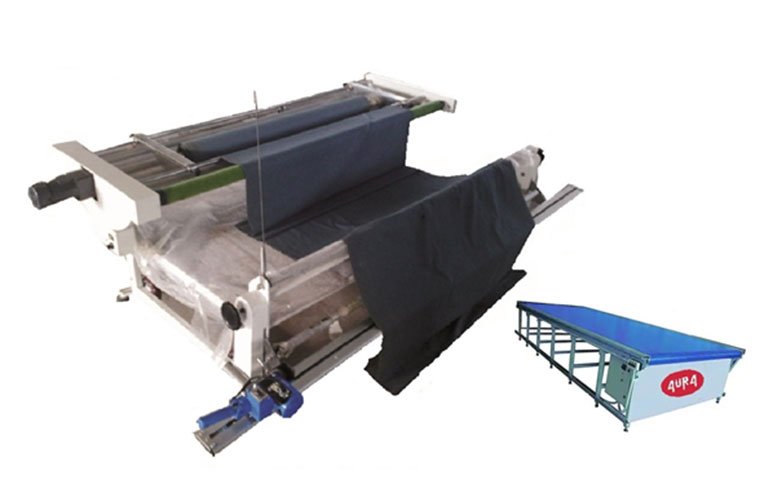

Semi-Automatic spreading machine

Efficient fabric preparation for consistent spreading, accurate layering and smoother cutting-room production.

Designed for knit and woven materials, the semi-automatic spreading machine reduces manual fabric handling while helping operators maintain controlled tension and uniform alignment. Its practical controls support faster setup, dependable repeatability and better use of fabric across both short production runs and continuous garment manufacturing.

Semi-Automatic spreading machine, spreading table

Features

Spreading machine (size 1200-1800mm)
With cutting function and motor controlled pulling attachment.
With speed regulator.
(Size: 1800mm width) with cutting function and motor controlled pulling attachment with speed regular.
Elimination of manual spreading and layering of fabrics which is the weakest part of the cutting room production chain.
Several times increase of spreading efficiency for each type of fabric.
Only one operator results in significant reduction of work costs.
Very fast spreading of matters for small series and single production orders.
Spreading many kind of knitting and woven fabric.
Electric count, insure high precise record.
Automatic start checks control when machine is switched on.
Ability to program all steps in a spread according to production need.
Program to count spreading time and total spread meters.
Digital touch screen.
Fabric Auto cutting without tension.
Automatic stop when fabric is used up.

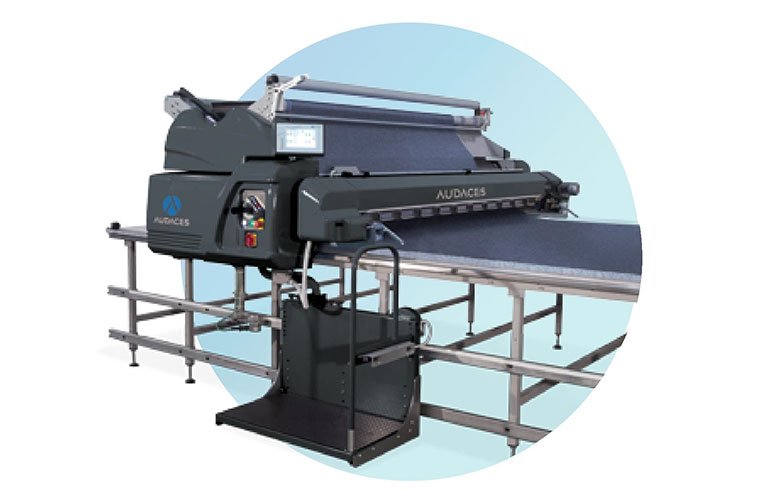

Audaces Linea

Audaces Linea automatic spreader accelerates the production and marketing of your products. Schedule multiple same-day spreads with simple touches on the machine touch screen

Tension control The spreads are made without tensioning the fabrics (or other materials). The machine is parameterized according to each material, ensuring quality in the finished piece. Fabric layers quality In addition to aligning the edges, Audaces Linea has the intelligence to count the length and number of layers established for each spread. It is also possible to interrupt the spreading process by identifying any fabric failure and either resume from the zero point or continue from the current point.
Zero spacing and high cut quality. Cutting with zero spacing between the patterns, the machine sets the starting points automatically, guaranteeing cutting quality from the first to the last layer, with maximum use of raw material.
The best cost-benefit ratio in the market. Manufactured with commercial electronics and first-line parts, Neocut Bravo guarantees low maintenance costs and energy savings. More time for your business to grow. Audaces solutions guarantee agility and time gain in the processes of spreading and cutting. We save your time so that you can plan the growth of your company.
Low maintenance cost Manufactured with commercial electronics and first-line parts easily found on the market. And you even have specialized technical assistance.

Features

Operator control panel (right or left)
Automated cradle tilt system.
Color computer touch screen with auto diagnosis system.
Electronic control material tension system.
Photocells Edges alignment placed on the moving base
Infrared security sensors for automatic stop in case of obstacles
Spreading with or without catchers
Storage of different spreading programs
Two-way cutter with variable speed and automatic lift
Maximum speed 100 m/min
Spreading height up to 22cm
Diameter of fabric roll up to 60cm
Maximum weight of fabric roll50kg
Fabric width up to 180 cm
Spreader connection with external pc and remote data transmission by software Linear Planner

With Table for layering the garments Total Length 15 M

Technical Guidance

Frequently Asked Questions

Clear answers about machine selection, pricing, performance, installation and nationwide support.

8 Questions

Fabric Inspection Machines

What is the price of a Fabric Inspection Machine in India?

The price depends on the machine configuration, fabric width, and automation level. Contact us for a customised quotation based on your requirements.

Who are the leading Fabric Inspection Machine manufacturers in India?

AURA by Welco is a trusted Indian manufacturer offering premium fabric inspection machines designed for high productivity, accuracy, and long service life.

What is the inspection speed of a Fabric Inspection Machine?

The inspection speed varies depending on the fabric type and machine settings, ensuring fast inspection without compromising quality.

What is a Fabric Inspection Machine?

A Fabric Inspection Machine is used to inspect, measure, rewind, and detect defects in fabric before it moves to the cutting or production stage.

Why is a Fabric Inspection Machine important in the garment industry?

It helps detect fabric defects early, reduces production losses, improves garment quality, and minimises customer rejections.

What is an Automatic Fabric Inspection Machine?

An Automatic Fabric Inspection Machine uses advanced controls and automated fabric handling to improve inspection accuracy, speed, and operator convenience.

Why should I choose the AURA Fabric Inspection Machine?

The AURA Fabric Inspection Machine offers a 4-in-1 design, PLC controls, energy-efficient LED lighting, and high-speed inspection for maximum productivity and reliability.

Where can I buy a Fabric Inspection Machine in Tirupur?

AURA Fabric Inspection Machines are available for customers in Tirupur through Welco, with installation, training, and after-sales service support across India.

5 Questions

Fabric Relaxing & Rolling Machines

What is the price of a Fabric Relaxing Machine?

The price depends on the machine width, capacity, and features. Contact us for a customised quotation based on your production requirements.

What is the price of a Fabric Relaxing Machine in India?

Fabric Relaxing Machine prices in India vary according to specifications and automation. We offer competitive pricing with complete installation and after-sales support.

Where can I buy a Fabric Relaxing Machine in India?

AURA by Welco supplies premium Fabric Relaxing Machines across India with nationwide delivery, installation, operator training, and service support.

What is a Fabric Rolling Machine?

A Fabric Rolling Machine is used to rewind, roll, and prepare fabric rolls efficiently, ensuring smooth fabric handling and reducing manual labour.

Where can I buy a Fabric Rolling Machine for sale?

AURA by Welco offers high-performance Fabric Rolling Machines designed for garment manufacturers, textile mills, and fabric processing units with complete after-sales support.
