Jacket Finishing Machine
Features
- Automatic LED Controller(8 programs)(set :- Close,press,steam,Vacuum).
- Period of step:-.5/1.5/1.5/2.0/2.5 second.
- 3 level safety production device.
- Output single on electric board (easy to check faulty).
- Stainless steel board, steam heating system.
- Top Buck steam sprays (italtmade value).
- Bottom buck vacuum.
- Famous Pneumatic parts.
Features
- Pneumatic Pressure adjustment for every type of fabric.
- Sensitive ironing with Pat-pat ironing functions.
- Safety frame for operator safe optional.
- Computer (PLG) control.
- Laser pointer.
Features
- Sclssors-type close & press.
- Metal buck is suitable for garment (Customizable)
- Automatic LED Controller (8 programs)
- Automatic LED Controller (8 programs)
- (Set: close, press steam, Vacuum)
- Period of step: 0.5/1.0/1.5/2.0/2.5 second
- 3 level safety protection device.
- Output signal on electric board (easy to check faulty)
- 180 mm length shock absorber (long life)
- Stainless still board, Steam heating system.
- Top buck steam spray (Italy-made Valve)
- Bottom buck has vacuum
- Famous Pneumatic parts.
Features
- Pneumatic Pressure adjustment for every type of fabric
- Sensitive Ironing with Pat-pat Ironing function.
- Safety frame for operate safe optional
- Computer (PLG) Control
- Laser Pointer
Features
- Sclssors-type close & press
- Metal buck is suitable for garment (Customizable)
- Automatic LED Controller (8 programs)
- (Set: close, press steam, Vacuum)
- Period of step: 0.5/1.0/1.5/2.0/2.5 second
- 3 level safety protection device.
- Output signal on electric board (easy to check faulty)
- 180 mm length shock absorber (long life)
- Stainless still board, Steam heating system.
- Top buck steam spray (Italy-made Valve)
- Bottom buck has vacuum
- Famous Pneumatic parts.
Features
- Automatic LED Controller(8 programs)(set : - Close,press,steam,Vacuum)
- Period of step:-.5/1.5/1.5/2.0/2.5 second
- 3 level safety production device.
- Output single on electric board (easy to check faulty).
- Stainless steel board, steam heating system.
- Top Buck steam sprays (italtmade value).
- Bottom buck vacuum.
- Famous Pneumatic parts
From Finisher Machine
- Aura Body formers can fully meet the most discerning requirement for finishing jackets, coats and dresses in the laundry dry-cleaning and garment industries.
- Both the machines are programmed by three timers: Steam, Hot air and Cold air. The Combination of three cycles makes the garment press perfectly.
- The machines are constructed from stainless steel (INOX AISI 304): Special powder coating on the body enable long rust free life.
- The AG 94 IB with inbuilt boiler is an energy saving garment former. The Steam condensate can return to the steam generator for lower steam consumption and does not require a steam trap.
- Available extras: Stream Iron assembly, Steam Gun, water spray gun, alternative dummies which are interchangeable with the standard utility dummy which is supplied with the basic unit.
| Model | AG-94 Premium | AG-94 Ultra-Premium |
|---|---|---|
| Air Working pressure | 6-8 Bar | 6-8 bar |
| Steam working pressure | 4-5 bar | 4-5 bar |
| Steam consumption | 15-20 kg/hr. | 15-20kg/hr. |
| Overall size (in mm) | 975x430x1400 | 1500x690x1600 |
| All inlet ¼” | ¼” | &ndnsp |
| Steam Inlet | ½” | ½” |
| Boiler drain | ½” | ½” |
| Pump motor | 2 kw | 2 kw |
| Return Outlet | ½” | 1/2” |
| Fan motor | 1.5 kw | 1.5 Kw |
| Voltage | 415v 3 ph | 415v 3 ph |

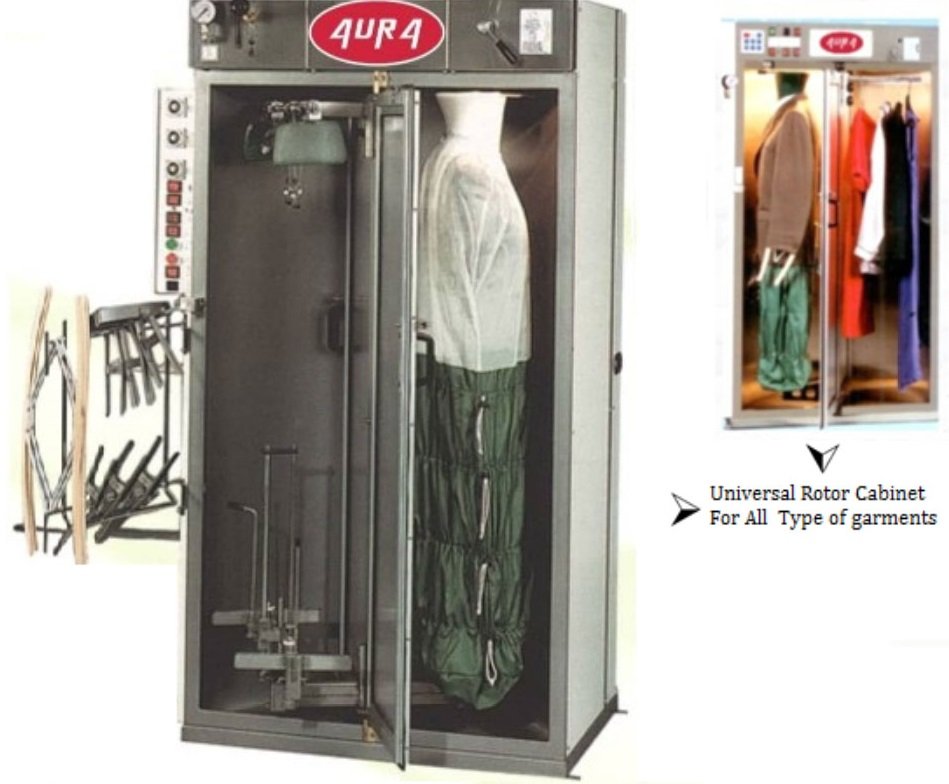

Universal Garments Finishing Machines
| Model | AG-92 Premium |
|---|---|
| Required Power | 400v/3+N/50Hz |
| Water Feeding | Hosepipe 13mm |
| Steam Inlet | 1/2 |
| Return outlet | 1/2 |
| Steam working Pressure | 4-5 bar |
| Steam Consumption | 16-20 kg/h |
| Boiler Drain | 1/2 |
| Boiler heating | 10/12/15/18 kw |
| Pump Motor | 0.6 kw |
| Fan Motor | 0.75 kw |
| Warm air outlet | 160mm |
| Encumbrance | 1060x1040x1820 |
| Net weight with boiler | 270 kg |
| Gross weight | 310kg |
| Overall Dimension | 1230x1000x2100mm |
Garment Packing Machine
Universal Packing Machine for all type of Garments
| Packing Machine |
|---|
| Best Class Garment Packing Machine |
| The Machine Comes with less maintenance and compact design |
| With longer function life |
| Ideal for every type of garment Packing |
| Specialized for every type of Indian and western wear |
| An efficient and convenient way for Laundry Outlet |
The ultimate solution in form finishing, the Pony cosmos revolving finishing cabinet is a flexible system that can be used as a double form finisher, pants toppet/Jacket finisher or mini tunnel. The Cosmos system provides a high-production, deskilled operation for retail stores & distribution centers, hotels, uniform rental services, apparel manufactures and dry cleaners.
